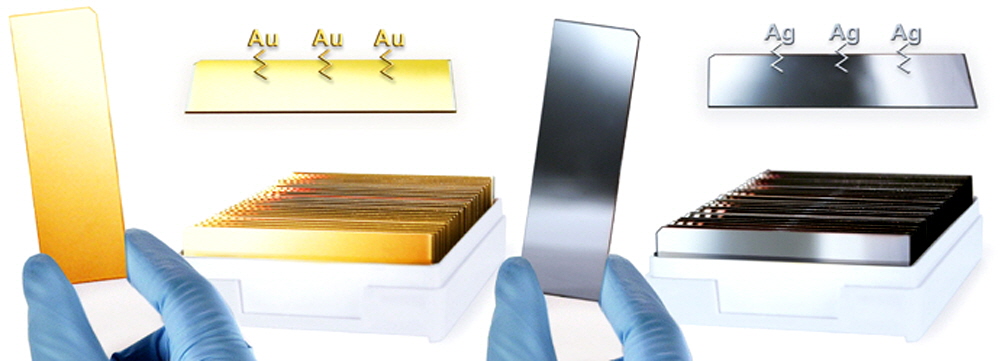

SuperGold and SuperSilver Microarray Substrate Slides provide superior 500 Å gold and silver layer surfaces, respectively, for microarrays, surface plasmon resonance, nanotechnology, electrochemistry, biosensors, and other high-end applications. The manufacturing process begins with our atomically smooth polished glass as the substrate and constructs the 500 Å gold or silver layers using an ultra-durable adhesion layer attachment approach. The SuperGold K and SuperSilver K series provide 2000 Å gold and silver layer surfaces, respectively, for applications requiring thicker Au and Ag surface thickness.

Table of Contents

• Introduction
• Quality Control
• Product Description
• Applications
• Technical Assistance
• Recommended Equipment
• Ordering Information
• Storage Conditions
• Warranty

Introduction
Congratulations on taking a big step towards improving your microarray and advanced technology research. This booklet contains complete protocols outlining the steps required to use ArrayIt® SuperGold and SuperSilver Microarray Substrates.

Quality Control
ArrayIt® takes every measure to assure the quality of our SuperGold and SuperSilver Microarray Substrates. Rigorous quality control monitoring on a substrate-by-substrate basis guarantees that these products conforms to the highest industry standards.

Product Description
ArrayIt® provides the world’s only gold or silver surfaces on atomically flat glass substrate slides. Our innovative, high-end SuperGold and SuperSilver Substrates make gold-surface and silver-surface based assays rapid, affordable, easy to implement, and the data obtained will be superior to other products in the field. Users will appreciate the following features:

• 500 Å layer of pure gold or pure silver for superior performance
• 2000 Å layer thickness available in the SuperGold K and SuperSilver K series
• Microarray, cell biology, nanotechnology, SPR, microscopy and other applications
• Atomically flat glass substrate improves assay precision
• Chrome adhesion method provides superior durability
• Cleanroom manufacturing process prevents particle contamination
• More convenient and better quality than “home made” surfaces
• Antistatic, environmental proof packaging
• Corner chamfer for unambiguous gold or silver (functional) side identification
• Substrates arrive ready to use

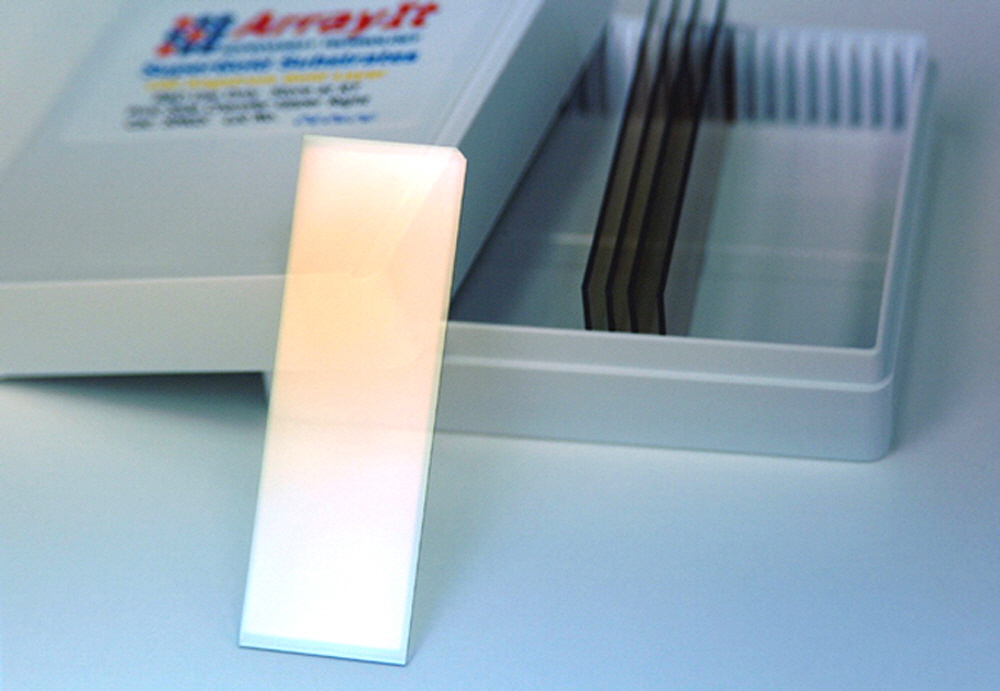

Figure 1.  SuperGold Microarray Substrate in a class 1 cleanroom. The 500 Å gold layer on the atomically flat glass substrate is readily visible. The SMG5 product is manufactured and packaged in a cleanroom environment, and is provided in boxes of 5 pieces for affordability and ease-of-use. Make sure to use the top (gold) side of the substrate only.  The gold is deposited on the side corresponding to the cropped (chamfer) located in the upper right of the substrate as shown in the photograph.

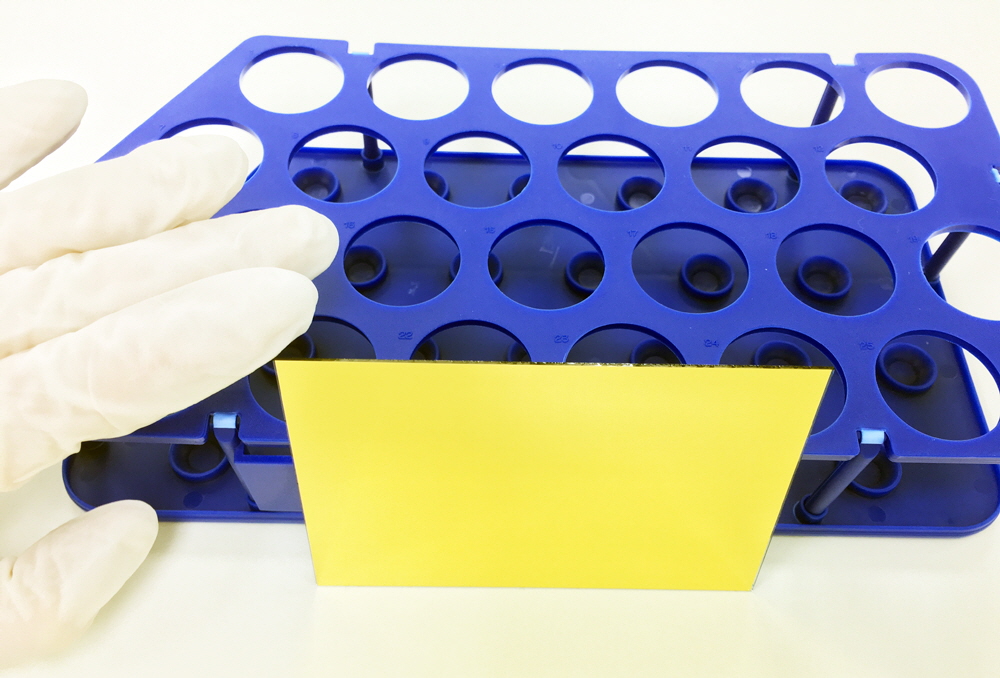

Figure 2. Arrayit SuperGold Microplate Glass (Cat. CCSL) with atomically smooth glass in standard 1 x 75 x 110 mm microplate size dimensions sputtered with a thin layer of atomic gold. Gold-coated microplate glass can be used in conjunction with adhesive microplates for a wide variety of research, life sciences, diagnostics and pharmaceutical applications.

Technical Assistance
Please contact us if you have any comments, suggestions, or if you need technical assistance.  By electronic mail: arrayit@arrayit.com (under the subject heading, please type ArrayIt technical assistance).  By telephone: (408) 744-1331, Monday–Friday PST 8:30am - 5:30 PM.  Please remember we want to hear about your successes and sample data to post on our website are always appreciated!

Scientific Publications
Click here and here for recent scientific publications using ArrayIt® brand microarray products from Arrayit International, Inc for gold-based microarray experimentation.

Recommended Equipment and Reagents
NanoPrint™ 2 Microarrayers
SpotBot® 4 Personal Microarrayers
InnoScan® Microarray Scanners
SpotLight™ 2 Microarray Scanners
Microarray Hybridization Cassettes
High Throughput Wash Station
Microarray High-Speed Centrifuge
Protein Printing Buffer
BlockIt™ Blocking Buffer
Microarray Air Jet
Microarray Cleanroom Wipes
PCR Purification Kits
SuperProtein Blocking Buffer
Micro-Total RNA Extraction Kit
MiniAmp mRNA Amplification Kit
Indirect Amino Allyl Fluorescent Labeling Kit
Universal Reference mRNA
Green540 and Red640 Reactive Fluorescent Dyes
Hybridization Buffers
