Peptide Synthesis
Data Sheet
Shop this product in our online store
Arrayit | Microarray peptide synthesis personal synthesizers digital temperature control benchtop design life sciences research
Instruments - Microarray Processing - Peptide Synthesis - Personal Peptide Synthesizers to Manufacture Custom Peptides for Microarray Manufacturing and Other Life Sciences Research Applications

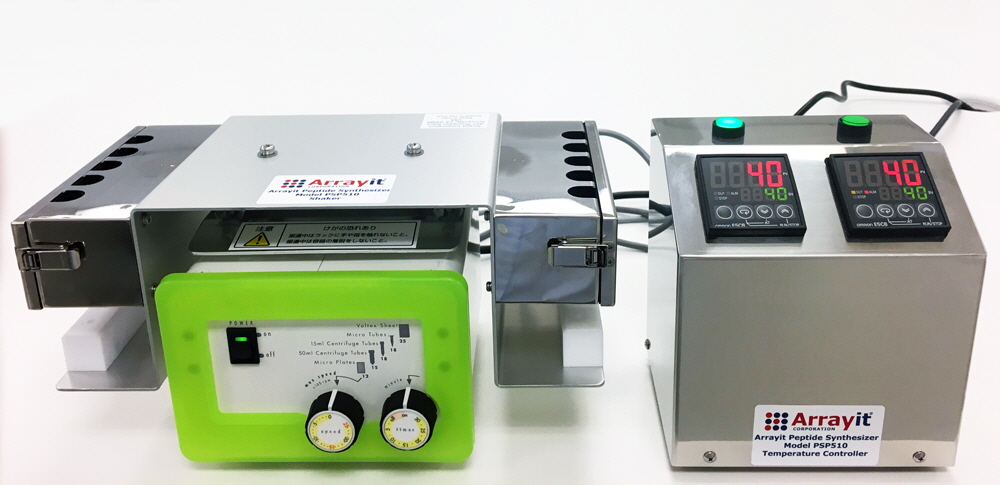

Arrayit Peptide Synthesizer Model PSP510 including the shaker (left) and dual-channel digital temperature controller (right). The PSP510 allows the simultaneous synthesis of 10 peptides per run.

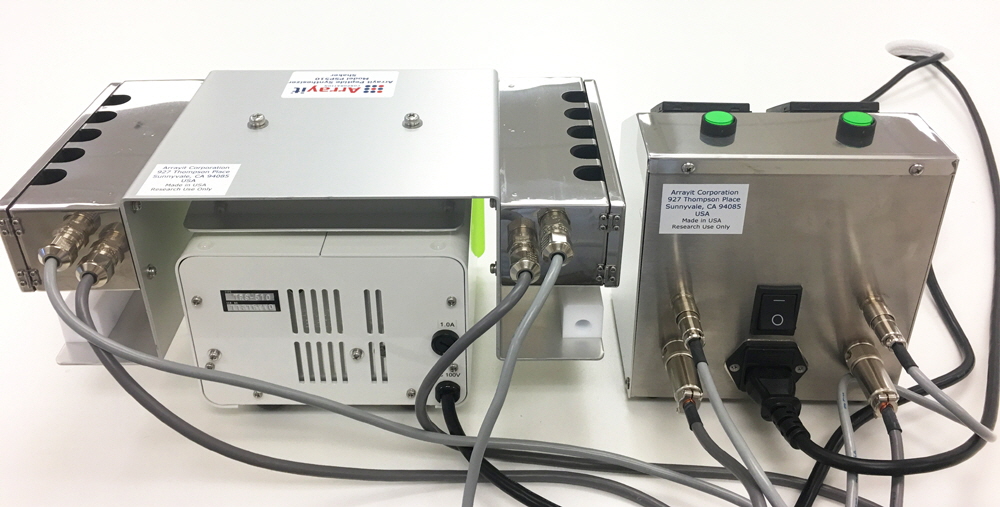

Arrayit Peptide Synthesizer Model PSP510 rear-view including cables and connectivity for the shaker (left) and dual-channel digital temperature controller (right). The PSP510 allows the simultaneous synthesis of 10 peptides per run.
Peptide Synthesizer Model PSP510 |
|
|
10-position Reactor Holder with PTFE manifolds for waste x 1 Waste tube x 1 Shaker (0.5A, AC100V, 50/60Hz, 300-2500 rpm) x 1 LibraTube (RT5M) x 10 Top caps for RT5M (RT5C) x 10 2-way Stop Valves -PTFE (RTV-SF2) x 10 List Price: USD 4,787 |
Peptide Synthesizer Model PSS510 |
|
|
10-position heating and cooling reaction system with shaker LibraTube (RT5M100) and Small LibraTube (RT3M100) work with this system Two independent temperature control system Temperature range: up to 120 degrees Celcius Two independent heating blocks and cooling ports (cooling requires circulating chiller) Two independent waste lines through PTFE manifold Shaker with timer and speed adjuster List Price: Please inquire |
Peptide Synthesizer Model PSL503 |
|
|
Shaker (0.5A, AC100V, 50/60Hz) with Temperature Controller (5.1A, AC100V, 50/60Hz) and PCTFE manifold x 1Waste tube x 1LibraTube G50 (RTG50) x 3Screw caps with septa (RV18160CS) x 32-way Stop Valves -PTFE (RTV-SF2) x 3List Price: Please inquire |
Peptide Synthesizer Model PSL205 |
|
|
Shaker (0.5A, AC100V, 50/60Hz) with Temperature Controller (5.1A, AC100V, 50/60Hz) and PCTFE manifold x 1Waste tube x 1LibraTube G20 (RTG20) x 5Screw caps with septa (RV18160CS) x 52-way Stop Valves -PTFE (RTV-SF2) x 5List Price: Please inquire |

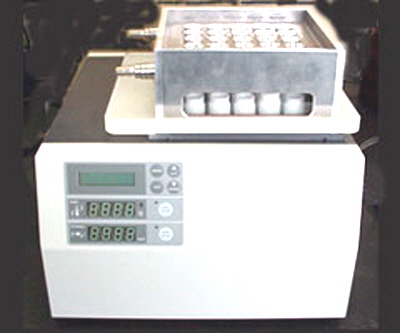

Peptide Synthesizer Model RSND25 |
|
|
25-Position Reaction System for solution and solid phase synthesis Heating, Cooling and Reflux with Shaker Highly efficient mixing Temperature range: 0 - 120 degrees Celcius (cooling requires circulating chiller) Revolution speed range: 0 - 1000 rpm Compatible wtih Big LibraTube (RT20M) List Price: Please inquire |
For information on compatible columns and other consumables click here. |
|
Request a quote email arrayit@arrayit.com |
|
Publications related to Peptide Microarray and the above Synthesis Instruments (Dr. Nokihara and co-workers, HiPep Laboratories and Arrayit)
Nokihara, K., Hirata, A., Takebayashi, Y., Ohyama, T., Kawasaki, T., Miyazato, N., Kodama, Y., Ono, N., Sogon, T., Suzuki, K., Miyajima, M., Kawahira, N. and Oka, Y. Peptide Science 2008, Nomizu, M., ed.; Japanese Peptide Society, pp 95-98, 2009. Production of peptide and glycopeptide libraries and development of novel materials for microarrays focusing on protein detection.
Kawasaki, T., Miyajima, M., Kawahira, N., Hirata, A., Ohyama, T., and Nokihara, K. Peptide 2008, pp 184-185, 2008, Lankinen, H. (Ed), Construction of O-glycoside peptide libraries by Fmoc-SPPS using the building block strategy.
Nokihara, K., Hirata, A., Kawasaki, T., Miyazato, N., Kodama, Y., Ono, N., Sogon, T., Suzuki, K., Miyajima, M., Kawahira N., and Ohyama, T. Peptide 2008, pp 482-483, 2008, Lankinen, H. (Ed), Production of peptide arrays consisting of labeled structured peptide and glycopeptide libraries for the construction of protein detection systems.
Hirata, A.; Kawahira, N.; Suzuki, K.; Kawakami, H.; Ohyama, T.; Sogon, T.; Nokihara, K. Peptide Science 2007, Aimoto, S., Ono, S. eds.; Japanese Peptide Society, 2008; pp 167-170. Construction and characterization of a peptide library related to the human prion protein.
Nokihara, K.; Ohyama, T.; Ono, N.; Kawakami, H.; Kawahira, N.; Kodama, Y.; Miyazato, N.; Suzuki, K.; Miyajima, M.; Sogon, T, Hirata, A.; Kawasaki, T.; Takebayashi, Y.; Oka, Y. Peptide Science 2007, Aimoto, S., Ono, S. eds.; Japanese Peptide Society, 2008; pp 106-108. Development of peptide arrays as sensor elements and novel chip-materials focusing on practical bio-chip production.
Usui, K.; Tomizaki, K.; Ohyama, T.; Nokihara, K.; Mihara, H. Molecular BioSystems, The Royal Society of Chemistry, 2006, 2, 113-121. A Novel Peptide Microarray for Protein Detection and Analysis Utilizing a Dry Peptide Array System.
Nokihara, K.; Ohyama, T.; Kawakami, H.; Kawahira, N.; Kodama, Y.; Miyazato, N.; Ono, N.; Oka, Y. Peptides 2006, Rolka, K.; Rekowski, P., Silberring, J. eds.; Kenes International, 2006; pp340-341. Further development of a practical production system for labeled peptide arrays focusing on high throughput protein detection.
Nokihara, K.; Ohyama, T.; Kawakami, H.; Kawahira, N.; Kodama, Y.; Miyazato, N.; Ono, N.; Rasidi, S.; Usui, K.; Mihara, H.; Oka, Y. Peptide Science 2006, Mihara, H., Ishida, H. eds.; Japanese Peptide Society, 2006; pp 334-335. Construction of Novel High hroughput Recognition Systems Using Labeled Peptide Arrays Focusing on Protein Detection Chips.
Nokihara, K., Future Materials, 6, 42-49, 2006, Synthetic Peptides for Bio-sensor Elements, Development of High Throughput Protein Detection Systems (Review in Japanese).
Usui, K.; Tomizaki, K.; Nokihara, K.; and Mihara, H. Peptides 2005, Understanding Biology Using Peptides, Sylvie E. ed.; Blondelle, American Peptide Society, 2005; pp731-733. Designed Peptide Microarrays For Protein Detection and Characterization.
Nokihara, K.; Ohyama, T.; Yonemura, K.; Oka, Y.; Usui, K.; Mihara, H. Peptides 2005, Understanding Biology Using Peptides, Sylvie E. Blondelle, ed.; American Peptide Society, 2005; pp 738-739. High Throughput Preparation of Peptide Arrays Containing Two Fluorescent Dyes Focusing on Practical Protein Detection Systems.
Nokihara, K.; Ohyama, T.; Yonemura, K.; Usui, K.; Tomizaki, K.; Mihara, H. Peptide 2004, Flegel, M.; Fridkin, M.; Gilon, C., Slaninova, J. eds.; Kenes International, Geneva, 2005; pp 176-177. Optimization of peptide arrays on chip as novel practical protein characterization system.
Usui, K.; Ojima, T.; Suzuki, M.; Watanabe, S.; Tomizaki, K.; Nokihara, K.; Mihara, H. Peptide 2004, Flegel, M.; Fridkin, M.; Gilon, C., Slaninova, J. eds.; Kenes International, Geneva, 2005; pp 401-402. Protein-detection microarrays using structure-based designed peptide libraries.
Nokihara, K.; Usui, K.; Yonemura, K.; Ohyama, T.; Oka, Y, Tomizaki, K.; Mihara, H. Peptide Science 2004, Shimohigashi, Y. ed.; The Japanese Peptide Society, 2005; pp 145-148. Studies on Fluorescent Dyes and Surface Chemistry Focusing on Practical Peptide Array Preparation.
Shimohigashi, Y. ed.; The Japanese Peptide Society, 2005; pp 113-114. Peptide Microarrays Using Designed Libraries for Protein Detection Usui, K.; Takahashi, M.; Nokihara, K.; Mihara, H. Molecular Diversity, 2004, 8, 209-218. Peptide arrays with designed α-helical peptides for characterization of proteins from FRET-fingerprint patterns.
Usui, K.; Ojima, T, Takahashi, M.; Nokihara, K.; Mihara, H. Biopolymers, Peptide Science, 2004, 76, 129-139. Peptide arrays with designed secondary structures for protein characterization using fluorescent fingerprint patterns.
Nokihara, K.; Ohyama, T.; Usui, K.; Yonemura, K.; Takahashi, M. and Mihara, H. Solid-Phase Synthesis and Combinatorial Chemical Libraries 2004, Epton, R. ed.; Mayflower Scientific, UK, 2004; pp 83-88. Development of peptide-chips focusing on a high throughput protein-detection system.
Nokihara, K.; Ohyama, T.; Ono, N, Yonemura, K.; Sugioka, N. Peptide Science 2003, Ueki, M. ed.; The Japanese Peptide Society, 2004; pp 161-164. Optimization for the selective removal of sulfhydryl protection in Fmoc-solid phase peptide synthesis for side chain modification and/or immobilization.
Usui, K.; Ojima,T; Suzuki, M.; Takahashi, M.; Nokihara, K.; Mihara, H. Peptide Science 2003, Ueki, M. ed.; The Japanese Peptide Society, 2004; pp 111-112. Designed peptide microarrays and protein characterization using fingerprint patterns.
Takahashi, M.; Nokihara, K.; Mihara, H. Chemistry and Biology, 2003, 10, 53-60. Construction of a protein-detection system using a loop peptide library with a fluorescence label.
Usui, K.; Takahashi, M.; Ojima, T.; Suzuki, M.; Nokihara, K.; Tamiya, E.; Mihara, H. Peptide 2003 Revolution: Genomics & Therapeutics, Chorev, M., Sawyer, T. K. eds.; American Peptide Societ5y, 2003; pp 258-259. Peptide microarrays using structure-based peptide libraries for protein chips.
Mihara, H.; Takahashi, M.; Usui, K.; Ojima, T.; Nokihara, K. Peptide Science 2002, Yamada, T. ed.; The Japanese Peptide Society, 2003; pp 109-110. Structure-designed peptide microarrays for protein detection.
Usui, K.; Takahashi, M.; Ueno, A.; Nokihara, K.; Mihara, H. Peptides 2002, Benedetti, E., Pedone, C. eds.; Edizioni Ziino, Napoli, Italy, 2002; 646-647. Microarrays with α-helical peptides for protein detection using a FRET technique.
Mihara, H.; Takahashi, M.; Usui, K.; Ojima, T.; Ueno, A.; Nokihara, K. Peptides 2002, Benedetti, E., Pedone, C. eds.; Edizioni Ziino, Napoli, Italy, 2002; pp 564-565. Protein-detection systems using structure-based peptide libraries and peptide microarrays.
Usui, M. Takahashi, A. Ueno, Nokihara, K.; H. Mihara, Peptide Science 2001, Aoyagi, H. ed.; The Japanese Peptide Society, 2002; pp 405-406. Construction of a Protein-Detection System using Designed Peptides with Fluorescent Labels.
